You KYC the User

This guide is for developers who already KYC their users using a KYC provider and want to reuse that verification with Meld onramps. You’ll pass Meld the user’s KYC data either via a KYC share token or via raw data, so the user can skip KYC on the onramp. Passing Meld the KYC share token is preferable, but passing Meld the user’s raw KYC data instead can be used if you collect KYC using a KYC provider that Meld doesn’t support, or if you collect KYC information directly from the user without using a KYC provider. Meld does not store raw KYC field values or document images. Data is passed through to the KYC provider on submit. Logs redact KYC fields entirely; Meld only retains metadata (customer id, timestamps, requesting party). Always obtain user consent before submitting KYC on their behalf.

Summary of the steps

KYC the user with your own provider, and get their consent to share it
Create a Meld customer and store the customerId
Submit the KYC — either a share token or raw data plus documents
Wait for APPROVED
Start the transaction with bypassKyc: true

Before you begin

You have contacted your Meld account manager to enable this product for you
You have a KYC provider account and have integrated their KYC flow
You get a 1 time token from each onramp you use and add it to your KYC provider dashboard
You gather end-user consent in your UI before sharing KYC data with Meld and downstream partners

For sandbox testing details, see KYC testing.

Flows at a glance

Flow	Endpoint	Content type	API Response Contains
Submit KYC provider token	`POST /accounts/customers/{customerId}/kyc/initiate`	JSON (`TOKEN_IMPORT`)	Existing KYC provider applicant attached in Meld
Submit raw KYC	`POST /accounts/customers/{customerId}/kyc/initiate`	`multipart/form-data` (`RAW_DATA_IMPORT`)	KYC status `PENDING` + optional status URL

To enable this flow, do the following:

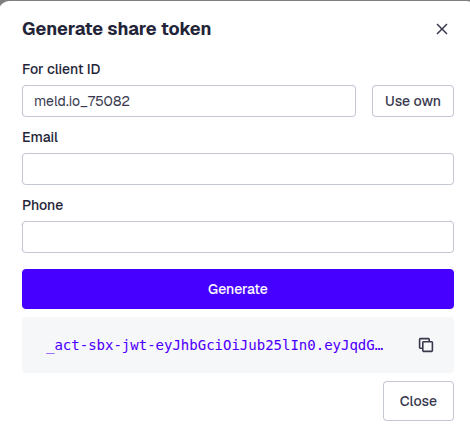

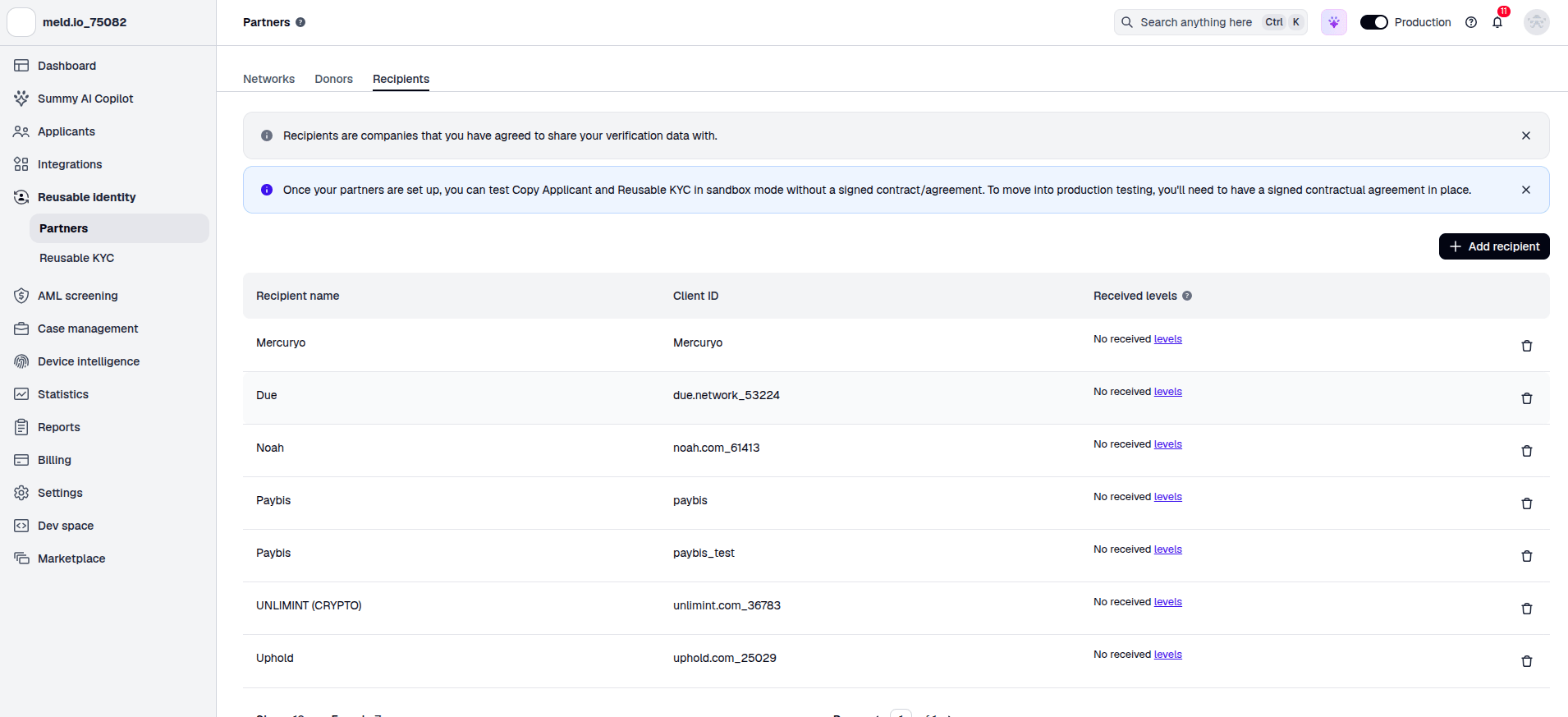

Step 1: KYC Provider Setup

This step is needed for token share. If you’re passing the raw KYC data instead, you can skip this step. This requires you to integrate a KYC provider, and use them to KYC your user. Note that the steps below show the Sumsub dashboard as an example. Get a share token from each onramp you will pass the KYC token to and add them in your KYC provider dashboard in the Partners tab.

For example, see Sumsub requirements for importing the applicant. You will need to pass the KYC provider’s KYC token, generated for client id meld.io_75082. This is done in the KYC provider’s dashboard, as shown below.

Step 2: KYC the User

In order for your user to not be asked for any additional KYC information by the onramp, you must collect, at minimum,

Identity document (Driver’s license, ID card, Residence permit, or Passport)
Selfie (advanced liveliness check)
Applicant data
- First name
- Last name
- Country
- Street
- Street (line 2)
- City
- State
- Postcode
- Nationality
- TIN / SSN
- Tax residence country
- Date of birth
- Phone Number

All of this must be under a KYC level named network-partner-level2.

Step 3: Create a Meld customer

This step is required for the user to skip logging into the onramp, and is a one-time setup per user. Call POST /accounts/customers and pass in the user’s first name, last name, email address, phone number, and birthday.

Request

{
  "name": {
    "firstName": "Jane",
    "lastName": "Doe"
  },
  "email": "jane.doe@example.com",
  "dateOfBirth": "1990-01-30",
  "phone": "+15551234567",
  "externalCustomerId": "your-internal-user-id"
}

Field	Notes
`dateOfBirth`	ISO date `yyyy-MM-dd`
`externalCustomerId`	Your internal user id (optional but recommended). Response echoes it as `externalCustomerId`.
`phone`	E.164 format

Response

{
  "id": "WmYumpKThCLWdgdK4fu2oh",
  "accountId": "W932jkkjn2jnjn",
  "externalCustomerId": "your-internal-user-id",
  "name": {
    "firstName": "Jane",
    "lastName": "Doe"
  },
  "email": "jane.doe@example.com",
  "dateOfBirth": "1990-01-30",
  "phone": "+15551234567",
  "status": "ACTIVE"
}

Store id as the Meld customerId. You need it for submit and export. With Meld-Version dated 2023-04-01 or later, the customer response also includes serviceProviderCustomers (including KYC status after submit).

Step 4: Submit KYC

Here, there are 2 flows to pass Meld the user’s KYC data. The first (and preferred) flow is via a KYC provider share token, while the second is via raw data. Call: POST /accounts/customers/{customerId}/kyc/initiate Choose a mode. Both modes return the same response shape and use the same webhook to signal approval. Note that the steps below show the Sumsub as the KYC provider as an example. No raw PII or document images transit through this request. Generate the KYC share token for client id meld.io_75082 (the exact steps depend on which KYC provider you use).

Request (`application/json`)

{
  "serviceProvider": "SUMSUB",
  "mode": "TOKEN_IMPORT",
  "serviceProviderDetails": {
    "kycToken": "_act-sbx-jwt-…",
    "applicantId": "65f3a9c1f0b3a12d34e56789"
  }
}

Field	Required	Description
`serviceProvider`	Yes	KYC provider name
`mode`	Yes	`TOKEN_IMPORT`
`serviceProviderDetails.kycToken`	Yes	KYC provider share/access token issued for `meld.io_75082`
`serviceProviderDetails.applicantId`	Yes	KYC provider’s applicant id for the user
`kycShareProviders`	No	Optional set of additional Meld onramps to share KYC with after approval

Response

{
  "customerId": "WmYumpKThCLWdgdK4fu2oh",
  "serviceProvider": "SUMSUB",
  "status": "APPROVED",
  "url": "https://kyc-provider.example.com/verify/abc123"
}

status is APPROVED when the imported applicant already matches Meld’s verification level; otherwise it may be PENDING. url is a KYC provider WebSDK link when present — often not needed if status is already APPROVED.

Mode B — Raw applicant data (`RAW_DATA_IMPORT`)

Use when you collect KYC using a KYC provider that Meld doesn’t support, or if you collect KYC information directly from the user without using a KYC provider. Send multipart/form-data. Do not send this mode as JSON — RAW_DATA_IMPORT is only accepted on the multipart route.

Multipart parts

Part	Type	Required	Description
`data`	JSON (string or file part)	Yes	Applicant metadata; see schema below
One part per document	File (`image/jpeg`, `image/png`, etc.)	Yes	Named to match each `documents[].part` in `data`

`data` JSON schema

{
  "serviceProvider": "SUMSUB",
  "mode": "RAW_DATA_IMPORT",
  "applicantData": {
    "firstName": "Jane",
    "lastName": "Doe",
    "dob": "1990-01-15",
    "nationality": "USA",
    "phone": "+15551234567",
    "email": "jane.doe@example.com",
    "tin": "123-45-6789",
    "taxResidenceCountry": "USA",
    "address": {
      "country": "USA",
      "street": "1 Main St",
      "subStreet": "Apt 4",
      "town": "Springfield",
      "state": "IL",
      "postCode": "62704"
    },
    "documents": [
      {
        "part": "docFront",
        "idDocType": "ID_CARD",
        "idDocSubType": "FRONT_SIDE",
        "country": "USA"
      },
      {
        "part": "docBack",
        "idDocType": "ID_CARD",
        "idDocSubType": "BACK_SIDE",
        "country": "USA"
      },
      {
        "part": "selfie",
        "idDocType": "SELFIE",
        "country": "USA"
      }
    ]
  }
}

Field notes

Field	Required	Notes
`serviceProvider`	Yes	KYC provider name
`mode`	Yes	Must be `RAW_DATA_IMPORT`
`applicantData.firstName` / `lastName`	Yes
`applicantData.dob`	Yes	ISO date `yyyy-MM-dd`
`applicantData.nationality`	Yes	3-letter country code (e.g. `USA`)
`applicantData.email`	Yes
`applicantData.phone`	No	E.164 when provided
`applicantData.tin`	No	Tax id (e.g. SSN)
`applicantData.taxResidenceCountry`	Yes	3-letter country code
`applicantData.address`	Yes	`country` required; `street`, `subStreet`, `town`, `state`, `postCode` optional
`applicantData.documents`	Yes	At least one document
`documents[].part`	Yes	Must match a file part name in the same request (`^[A-Za-z0-9][A-Za-z0-9._-]{0,63}$`)
`documents[].idDocType`	Yes	`PASSPORT`, `ID_CARD`, `DRIVERS`, `RESIDENCE_PERMIT`, or `SELFIE`
`documents[].idDocSubType`	No	`FRONT_SIDE` / `BACK_SIDE` for double-sided docs; omit for single-sided types like `PASSPORT` and `SELFIE`
`documents[].country`	No	3-letter issuing country code
`kycShareProviders`	No	Optional set of additional providers to share KYC with after approval

Example (curl)

curl -X POST "https://api.meld.io/accounts/customers/{customerId}/kyc/initiate" \
  -u "{apiKey}:{apiSecret}" \
  -F 'data={
    "serviceProvider":"SUMSUB",
    "mode":"RAW_DATA_IMPORT",
    "applicantData":{
      "firstName":"Jane",
      "lastName":"Doe",
      "dob":"1990-01-15",
      "nationality":"USA",
      "phone":"+15551234567",
      "email":"jane.doe@example.com",
      "taxResidenceCountry":"USA",
      "address":{"country":"USA","street":"1 Main St","town":"Springfield","state":"IL","postCode":"62704"},
      "documents":[
        {"part":"docFront","idDocType":"ID_CARD","idDocSubType":"FRONT_SIDE","country":"USA"},
        {"part":"docBack","idDocType":"ID_CARD","idDocSubType":"BACK_SIDE","country":"USA"},
        {"part":"selfie","idDocType":"SELFIE","country":"USA"}
      ]
    }
  };type=application/json' \
  -F "docFront=@./id-front.jpg;type=image/jpeg" \
  -F "docBack=@./id-back.jpg;type=image/jpeg" \
  -F "selfie=@./selfie.jpg;type=image/jpeg"

Response

{
  "customerId": "WmYumpKThCLWdgdK4fu2oh",
  "serviceProvider": "SUMSUB",
  "status": "PENDING",
  "url": "https://kyc-provider.example.com/verify/abc123"
}

Field	Notes
`status`	One of `PENDING`, `APPROVED`, `REJECTED`, `EXPIRED`, `UNKNOWN`
`url`	KYC provider WebSDK link for reference/status. When a selfie is submitted, the applicant does not need an extra liveness step in the WebSDK.

Meld creates (or reuses) the KYC provider’s applicant, uploads the documents, and requests review immediately.

Wait for approval

For either submit mode, listen for the CUSTOMER_KYC_STATUS_CHANGE webhook until payload.status is APPROVED. See Webhook events for the full event catalog and delivery behavior.

{
  "eventType": "CUSTOMER_KYC_STATUS_CHANGE",
  "eventId": "4cWK83avakzy8jG4ztmBUk",
  "timestamp": "2026-02-25T18:55:08.968360756Z",
  "accountId": "W9jSUfLiRWx1GkaMGt7DTT",
  "profileId": "WmZ1rqsv532RYW9ELxM4eo",
  "version": "2026-02-02",
  "payload": {
    "requestId": "4456e4e9b0174c53b962227df6766ca7",
    "customerId": "WmYumpKThCLWdgdK4fu2oh",
    "serviceProvider": "SUMSUB",
    "status": "APPROVED",
    "statusUpdatedAt": "2026-02-25T18:55:08.960052Z"
  }
}

If payload.status is REJECTED, the user failed KYC. They may retry submit with corrected data. If they still fail, then the user will have to try KYCing with the onramp directly, in the onramp’s widget.

Step 5: Initiate a transaction

Pass Meld the customerId of the user when you call POST /crypto/session/widget. Make sure to include the param "bypassKyc": true, which tells Meld to look up that customer’s KYC information and forward it to the onramp.

Request

{
  "sessionData": {
    "countryCode": "US",
    "destinationCurrencyCode": "BTC",
    "serviceProvider": "MERCURYO",
    "sourceAmount": "100",
    "sourceCurrencyCode": "USD",
    "walletAddress": "1EEo4ioA4spdJ2ZxiSQ1hWsp3Ve81ZRZ2F"
  },
  "sessionType": "BUY",
  "bypassKyc": true,
  "customerId": "WmYumpKThCLWdgdK4fu2oh"        // should be the same as the customer created above
}

Response

{
  "id": "WmYtVn52MCZkXQSdCFDU8N",
  "externalSessionId": null,
  "externalCustomerId": null,
  "customerId": "WmYumpKThCLWdgdK4fu2oh",
  "widgetUrl": "https://meldcrypto.com?token=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ7.eyJpc3MiOiJtZWxkLmlvIiwiaWF0IjoxNzcxMjY3MDM4LCJzdWIiOiJjcnlwdG8iLCJleHAiOjE3NzEyNjg4MzgsImFjY291bnRJZCI6Ilc5a2c5aVAxc2JweVpwdFFEY0NNSnUiLCJzZXNzaW9uSWQiOiJXbVl0Vm41Mk1DWmtYUVNkQ0ZEVThOIn0.eqFYseggwUyv-F7WyO-LKEhwEqLiWVOmAV4lNjuth60",
  "serviceProviderWidgetUrl": "https://exchange.mercuryo.io?widget_id=34c04adf-d04a-42de-a4aa-609a302b24tz&currency=BTC&fiat_currency=USD&fiat_amount=100&address=1EEo4ioA4spdJ2ZxiSQ1hWsp3Ve81ZRZ2F&type=buy&network=BITCOIN&merchant_transaction_id=WmYtVmRXgDnavemEzb3k6K&redirect_url=https%3A%2F%2Fmeldcrypto.com&country_code=US&email&payment_method=card&signature=zxcvbnmasdfghjkl",
  "token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJtZWxkLmlvIiwiaWF0IjoxNzcxMjY3MDM4LCJzdWIiOiJjcnlwdG8iLCJleHAiOjE3NzEyNjg4MzgsImFjY291bnRJZCI6Ilc5a2c5aVAxc2JweVpwdFFEY0NNSnUiLCJzZXNzaW9uSWQiOiJXbVl0Vm41Mk1DWmtYUVNkQ0ZEVThOIn0.eqFYseggwUyv-F7WyO-LKEhwEqLiWVOmAV4lNjuth60"
}

If you executed every step correctly, then when you open either the widgetUrl or serviceProviderWidgetUrl, then the user go straight to the onramp’s payment screen, as seen in this demo video.

And that’s it! Congrats, you are now using Meld’s Unified KYC product to enhance your users’ experience!

Error Cases

Situation	Typical result
`RAW_DATA_IMPORT` sent as JSON instead of multipart	`400` — must use multipart initiate
Missing file part declared in `documents[]`	`400` — missing/empty file part
Invalid `data` JSON or bean validation failure	`400` — invalid raw KYC request
Customer already has KYC at a different level	Fail — cannot start `RAW_DATA_IMPORT` against an incompatible existing applicant
