Payins (Virtual account onramp) Full Integration Guide

End-to-end guide for integrating Meld’s standing virtual-account onramp (fiat → crypto) over the Payment and Account APIs.

A provider provisions reusable bank deposit details for the user. When the user sends fiat to that account, the provider converts it and sends crypto to the destination wallet you registered. You present your own UI — there is no Meld-hosted widget. Fetch deposit instructions once per customer + provider + payment method + currency pair + destination wallet. The user reuses the same account for later deposits.

API compatibility: New fields may appear in responses without a version bump. Use flexible JSON parsing and do not reject unknown properties. Breaking changes ship under a dated Meld-Version.

Before you begin

You have a Meld API key with payment access (sandbox first, production for go-live)
Your account has headless onramps enabled (account_preference.crypto.headlessOnrampsEnabled). Reach out to Meld support to confirm this is enabled.
At least one virtual-account-capable onramp provider is enabled on your account.

Flow overview

Customer → Webhooks → KYC → Fetch VA details (once) → [Quote] → User sends fiat → Webhooks / GET transaction

One time per user

Create a customer (and address when required).
Configure webhooks.
Complete KYC for the provider(s) you will use.
Fetch virtual account details for customer + provider + payment method + currency pair + destination wallet.

Every deposit

(Optional) Get a quote for the amount the user wants to send.
User sends fiat to the same stored VA details.
Track via webhooks / Transactions API.

1. Create a customer

Endpoint: POST /accounts/customers Once per end user. Reuse the same Meld customerId for KYC, quotes, and deposit instructions.

Required fields

Field	Required	Notes
`externalId`	recommended	Your internal user id — useful for correlation
`name.firstName` / `name.lastName`	yes for KYC	Required for Sumsub / provider KYC
`email`	yes for KYC	Required for Sumsub / provider KYC
`dateOfBirth`	yes for KYC	Required for Sumsub / provider KYC
`type`	yes	e.g. `INDIVIDUAL`

{
  "externalId": "your-internal-user-id-123",
  "name": {
    "firstName": "John",
    "lastName": "Doe"
  },
  "email": "john@example.com",
  "dateOfBirth": "1990-03-15",
  "type": "INDIVIDUAL"
}

Response:

{
  "id": "WmYYgvN8ukpV62N3m4u3ee",
  "accountId": "W2aRZnYGPwhBWB94iFsZus",
  "externalId": "your-internal-user-id-123",
  "status": "ACTIVE",
  "type": "INDIVIDUAL",
  "serviceProviderCustomers": [],
  "addresses": []
}

Save the returned id. You may also use externalCustomerId on some endpoints when supported.

Add a customer address (required for Due Network)

If you plan to use Due Network, add a residential address before KYC. Due uses address country when creating / sharing the provider customer. Endpoint: POST /accounts/customers/{customerId}/addresses

{
  "type": "RESIDENCE",
  "address": {
    "firstName": "John",
    "lastName": "Doe",
    "lineOne": "123 Market St",
    "lineTwo": "Apt 4",
    "city": "San Francisco",
    "region": "CA",
    "countryCode": "US",
    "postalCode": "94105"
  }
}

Response:

{
  "id": "addr_01HXYZEXAMPLE000000001",
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "type": "RESIDENCE",
  "status": "ACTIVE",
  "addressDetails": {
    "lineOne": "123 Market St",
    "lineTwo": "Apt 4",
    "city": "San Francisco",
    "region": "CA",
    "country": "US",
    "postalCode": "94105"
  }
}

2. Configure webhooks

Set this up before KYC so you receive CUSTOMER_KYC_STATUS_CHANGE as well as transaction events. In the Meld dashboard (Developer → Webhooks), subscribe at minimum to:

CUSTOMER_KYC_STATUS_CHANGE
TRANSACTION_CRYPTO_PENDING
TRANSACTION_CRYPTO_TRANSFERRING
TRANSACTION_CRYPTO_COMPLETE
TRANSACTION_CRYPTO_FAILED

Verify signatures per Webhook authentication docs.

3. KYC

Standing virtual-account providers use ASYNC KYC: initiate once per (customer, provider) before fetching deposit instructions, then wait for provider KYC APPROVED. Endpoints:

POST /accounts/customers/{customerId}/kyc/initiate
PATCH /accounts/customers/{customerId}/kyc/initiate

Choose one Sumsub initiation mode:

Mode	When to use	What you send	What the user does
`HOSTED_URL`	User has not completed Sumsub yet	`serviceProvider: SUMSUB`, `mode: HOSTED_URL`, `kycShareProviders`	Open the returned `url` and complete Sumsub
`TOKEN_IMPORT`	User already has a Sumsub applicant in your Sumsub account	Same + `serviceProviderDetails.kycToken` / `applicantId`	Usually nothing for Sumsub — Meld imports the existing applicant

Both modes share KYC to the providers listed in kycShareProviders after Sumsub is approved. You still must wait for each share provider to reach APPROVED before deposit-instructions.

3a. `HOSTED_URL` — Meld returns a Sumsub link

{
  "serviceProvider": "SUMSUB",
  "mode": "HOSTED_URL",
  "kycShareProviders": ["NOAH", "DUENETWORK"]
}

Response:

{
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "serviceProvider": "SUMSUB",
  "status": "PENDING",
  "url": "https://kyc-provider.example.com/verify/abc123"
}

Direct the user to url. Listen for CUSTOMER_KYC_STATUS_CHANGE.

3b. `TOKEN_IMPORT` — import an existing Sumsub applicant

{
  "serviceProvider": "SUMSUB",
  "mode": "TOKEN_IMPORT",
  "kycShareProviders": ["NOAH", "DUENETWORK"],
  "serviceProviderDetails": {
    "kycToken": "_act-sbx-jwt-…",
    "applicantId": "sumsub-applicant-id"
  }
}

There is typically no Sumsub url to open — Meld attaches the existing applicant and shares to kycShareProviders. Listen for CUSTOMER_KYC_STATUS_CHANGE the same way.

3c. After Sumsub — provider-specific KYC link

After Sumsub approval, KYC is shared to kycShareProviders. A provider may still require its own step (status PENDING). The link lives on the customer record: Endpoint: GET /accounts/customers/{customerId} Look up that provider in serviceProviderCustomers[]. When present, send the user to kyc.additionalInfo.HostedURL, then wait until that provider’s kyc.status is APPROVED. Sample customer response (Sumsub approved; Noah still needs provider KYC):

{
  "id": "WmYYgvN8ukpV62N3m4u3ee",
  "accountId": "W2aRZnYGPwhBWB94iFsZus",
  "externalId": "your-internal-user-id-123",
  "status": "ACTIVE",
  "type": "INDIVIDUAL",
  "serviceProviderCustomers": [
    {
      "id": "spc_sumsub_example",
      "serviceProvider": "SUMSUB",
      "kyc": {
        "status": "APPROVED",
        "additionalInfo": null
      }
    },
    {
      "id": "spc_noah_example",
      "serviceProvider": "NOAH",
      "kyc": {
        "status": "PENDING",
        "additionalInfo": {
          "HostedURL": "https://noah.example.com/kyc/session/abc123"
        }
      }
    }
  ],
  "addresses": []
}

You can also react to CUSTOMER_KYC_STATUS_CHANGE webhooks and re-fetch the customer when a share provider moves to PENDING or APPROVED.

4. Get a quote (optional)

Endpoint: POST /payments/crypto/quote?integrationMode=HEADLESS Header: Meld-Version: 2026-05-01 customerId is optional. Pass it when available so ramp intelligence / previously-used scoring can use it. Use quotes to show rates, fees, available providers / methods, and each provider’s kycMode.

{
  "countryCode": "US",
  "sourceAmount": 100,
  "sourceCurrencyCode": "USD",
  "destinationCurrencyCode": "USDC",
  "paymentMethodType": "ACH",
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "walletAddress": "0x51FB80013111111111111112121111111"
}

Response:

{
  "quotes": [
    {
      "transactionType": "CRYPTO_PURCHASE",
      "sourceAmount": 100.00,
      "sourceAmountWithoutFees": 99.10,
      "fiatAmountWithoutFees": 99.10,
      "destinationAmountWithoutFees": null,
      "sourceCurrencyCode": "USD",
      "countryCode": "US",
      "totalFee": 0.90,
      "networkFee": 0.00,
      "partnerFee": 0.00,
      "transactionFee": 0.90,
      "destinationAmount": 99.10,
      "destinationCurrencyCode": "USDC",
      "exchangeRate": 1.0,
      "paymentMethodType": "ACH",
      "serviceProvider": "NOAH",
      "rampIntelligence": {
        "rampScore": 0.82,
        "previouslyUsed": null
      },
      "integrationMode": "HEADLESS",
      "kycMode": "ASYNC"
    }
  ]
}

Some providers (for example Brale) may not surface commercial quotes the same way; confirm available providers in Network Partner / quote responses for your account.

5. Fetch virtual account details

Endpoint: POST /payments/virtual-account/deposit-instructions Call this once for that customer + provider + payment method + currency pair + destination wallet. Store the returned bank details. Do not call again for each deposit unless that combination changes. Idempotency (recommended): X-Idempotency-Key: <uuid>

Successful create / return → HTTP 201
Same key after success → cached body, HTTP 200

Request (ACH example)

{
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "serviceProvider": "NOAH",
  "paymentMethodType": "ACH",
  "sourceCurrencyCode": "USD",
  "destinationCurrencyCode": "USDC",
  "destinationWalletAddress": "0x51FB80013111111111111112121111111"
}

Field	Required	Notes
`customerId`	yes	Meld customer id
`serviceProvider`	yes	From quote / capability discovery
`paymentMethodType`	yes	`ACH`, `SEPA`, `PIX`, or `MOBILE_MONEY`
`sourceCurrencyCode`	yes	Fiat
`destinationCurrencyCode`	yes	Crypto
`destinationWalletAddress`	yes	Where crypto is delivered
`customerPhoneNumber`	conditional	Required for `MOBILE_MONEY`

Response (ACH example)

{
  "depositInstructionsId": "WdEPOSITabcexample000001",
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "serviceProvider": "NOAH",
  "paymentMethodType": "ACH",
  "sourceCurrencyCode": "USD",
  "destinationCurrencyCode": "USDC",
  "destinationWalletAddress": "0x51FB80013111111111111112121111111",
  "receivingBankInformation": {
    "accountNumber": "441829750331",
    "routingNumber": "031101279",
    "bankName": "Example Community Bank",
    "accountHolderName": "Jordan Avery Ellis"
  },
  "serviceProviderDetails": {
    "bankCode": "031101279",
    "bankName": "Example Community Bank",
    "bankAddress": {
      "city": "Austin",
      "state": "TX",
      "street": "100 Main Street",
      "country": "US",
      "postCode": "78701"
    },
    "accountNumber": "441829750331",
    "paymentMethodId": "Bank/Ach/USD/031101279/441829750331/example-payment-method-id",
    "accountHolderName": "Jordan Avery Ellis",
    "paymentMethodType": "BankAch"
  }
}

Display details from receivingBankInformation (typed fields) and any extras in serviceProviderDetails. The user sends fiat from their bank app. Meld and the provider do not collect the user’s bank login credentials.

Response (SEPA example)

{
  "depositInstructionsId": "WdEPOSITabcexample000002",
  "customerId": "WmYYgvN8ukpV62N3m4u3ee",
  "serviceProvider": "DUENETWORK",
  "paymentMethodType": "SEPA",
  "sourceCurrencyCode": "EUR",
  "destinationCurrencyCode": "USDC",
  "destinationWalletAddress": "0x51FB80013111111111111112121111111",
  "receivingBankInformation": {
    "iban": "DE89370400440532013000",
    "bic": "COBADEFFXXX",
    "bankName": "Example European Bank",
    "accountHolderName": "Jordan Avery Ellis"
  },
  "serviceProviderDetails": {
    "iban": "DE89370400440532013000",
    "bic": "COBADEFFXXX",
    "bankName": "Example European Bank",
    "accountHolderName": "Jordan Avery Ellis",
    "memo": "MELD-REF-1"
  }
}

For SEPA, show iban / bic (and bank / account-holder name) from receivingBankInformation. Some providers also return a payment reference (for example Due Network’s memo in serviceProviderDetails) — the payer must include this reference on the transfer so the provider can correlate funds.

After you have the details

Store the VA details against your user.
On later deposits: optional quote → show the same account / routing (or IBAN) → user sends fiat.
Listen for transaction webhooks — no new deposit-instructions call unless destination wallet, currencies, provider, or payment method changes.

6. Tracking

Webhook sample (buy)

Correlate with paymentTransactionId.

{
  "eventType": "TRANSACTION_CRYPTO_PENDING",
  "eventId": "AAsuLXHXD3mS1cjNBuHHzv",
  "timestamp": "2025-02-24T16:36:41.717262Z",
  "accountId": "WQ5RyhdFzE45qjsomdzQ1u",
  "version": "2025-03-01",
  "payload": {
    "paymentTransactionId": "WePZCYJW7cdXR7SxUMp8mE",
    "customerId": "WmYYgvN8ukpV62N3m4u3ee",
    "externalCustomerId": "your-internal-user-id-123",
    "paymentTransactionStatus": "PENDING",
    "transactionType": "CRYPTO_PURCHASE"
  }
}

Fetch the full transaction

Endpoint: GET /payments/transactions/{paymentTransactionId}

{
  "transaction": {
    "id": "WePZCYJW7cdXR7SxUMp8mE",
    "accountId": "WQ5RyhdFzE45qjsomdzQ1u",
    "isPassthrough": false,
    "isImported": false,
    "customer": {
      "id": "WmYYgvN8ukpV62N3m4u3ee",
      "accountId": "WQ5RyhdFzE45qjsomdzQ1u",
      "externalId": "your-internal-user-id-123",
      "email": "john@example.com",
      "name": {
        "firstName": "John",
        "lastName": "Doe"
      }
    },
    "transactionType": "CRYPTO_PURCHASE",
    "status": "SETTLING",
    "sourceAmount": 100.00,
    "sourceCurrencyCode": "USD",
    "destinationAmount": 99.10,
    "destinationCurrencyCode": "USDC",
    "paymentMethodType": "ACH",
    "serviceProvider": "NOAH",
    "serviceTransactionId": "noah-tx-abc123",
    "serviceProviderDetails": {},
    "createdAt": "2026-07-15T18:00:00Z",
    "updatedAt": "2026-07-15T18:05:00Z",
    "countryCode": "US",
    "externalCustomerId": "your-internal-user-id-123",
    "fiatAmountInUsd": 100.00,
    "cryptoDetails": {
      "sourceWalletAddress": null,
      "destinationWalletAddress": "0x51FB80013111111111111112121111111",
      "sessionWalletAddress": "0x51FB80013111111111111112121111111",
      "networkFee": 0,
      "transactionFee": 0.90,
      "partnerFee": 0,
      "totalFee": 0.90,
      "networkFeeInUsd": 0,
      "transactionFeeInUsd": 0.90,
      "partnerFeeInUsd": 0,
      "totalFeeInUsd": 0.90,
      "blockchainTransactionId": null,
      "chainId": "1"
    }
  }
}

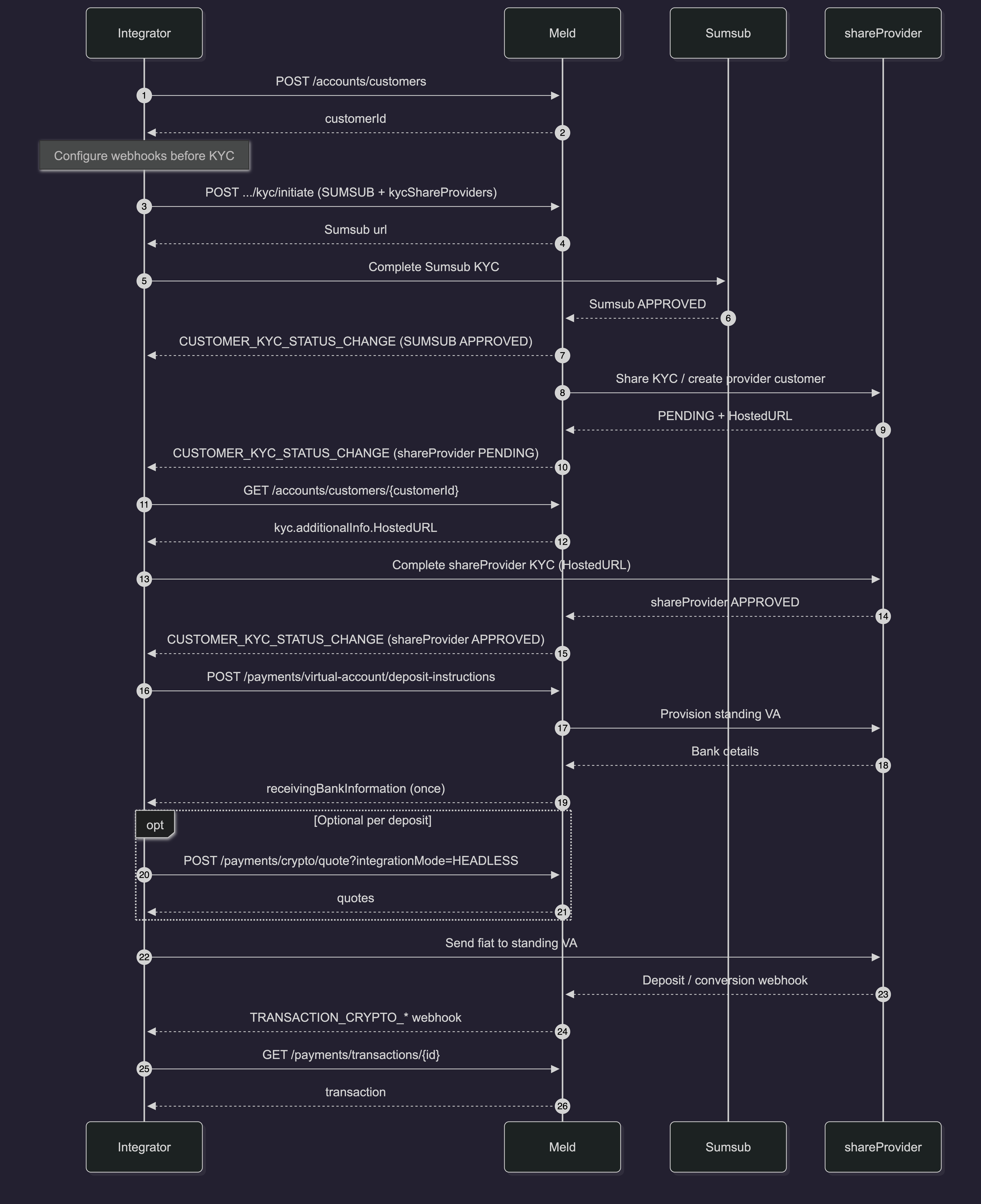

Sequence Diagram

Sumsub KYC Approval Workflow 2026 07 17 230908

Notes and limits

Standing virtual accounts require headlessOnrampsEnabled on the account.
Primary API: POST /payments/virtual-account/deposit-instructions (fetch once, reuse).
Supported payment methods for this flow: ACH, SEPA, PIX, MOBILE_MONEY.
Provider sandboxes often cannot complete full settlement — you may stop at instruction issuance.

Welcome

AI Toolkit

Meld API

Stablecoins & Digital Assets

Bank Linking

Payins (Virtual account onramp) Full Integration Guide

Before you begin

Flow overview

One time per user

Every deposit

1. Create a customer

Required fields

Add a customer address (required for Due Network)

2. Configure webhooks

3. KYC

3a. `HOSTED_URL` — Meld returns a Sumsub link

3b. `TOKEN_IMPORT` — import an existing Sumsub applicant

3c. After Sumsub — provider-specific KYC link

4. Get a quote (optional)

5. Fetch virtual account details

Request (ACH example)

Response (ACH example)

Response (SEPA example)

After you have the details

6. Tracking

Webhook sample (buy)

Fetch the full transaction

Sequence Diagram

Notes and limits

​Before you begin

​Flow overview

​One time per user

​Every deposit

​1. Create a customer

​Required fields

​Add a customer address (required for Due Network)

​2. Configure webhooks

​3. KYC

​3a. HOSTED_URL — Meld returns a Sumsub link

​3b. TOKEN_IMPORT — import an existing Sumsub applicant

​3c. After Sumsub — provider-specific KYC link

​4. Get a quote (optional)

​5. Fetch virtual account details

​Request (ACH example)

​Response (ACH example)

​Response (SEPA example)

​After you have the details

​6. Tracking

​Webhook sample (buy)

​Fetch the full transaction

​Sequence Diagram

​Notes and limits

Before you begin

Flow overview

One time per user

Every deposit

1. Create a customer

Required fields

Add a customer address (required for Due Network)

2. Configure webhooks

3. KYC

3a. `HOSTED_URL` — Meld returns a Sumsub link

3b. `TOKEN_IMPORT` — import an existing Sumsub applicant

3c. After Sumsub — provider-specific KYC link

4. Get a quote (optional)

5. Fetch virtual account details

Request (ACH example)

Response (ACH example)

Response (SEPA example)

After you have the details

6. Tracking

Webhook sample (buy)

Fetch the full transaction

Sequence Diagram

Notes and limits
