Example

You can see Meld's white label widget experience being used here by Metamask. Metamask asks the user what they would like to buy and how they would like to pay, then hits Meld's quote API for a list of quotes, then displays the quotes to the user, then once the user selects a quote Metamask calls Meld's API to launch that onramp's widget for the user to complete the purchase. Finally, Metamask hits Meld's API to get back transaction details.

Launching a Crypto Ramp Widget

You can request a widget session, which launches the selected service provider for your customer to interact with. To do so, see the create crypto widget endpoint. We return a fully formatted URL for you to route your customer to.

Before you launch a crypto widget, make sure you have whitelisted Meld's urls and IP addresses.

Setup

Buying Crypto

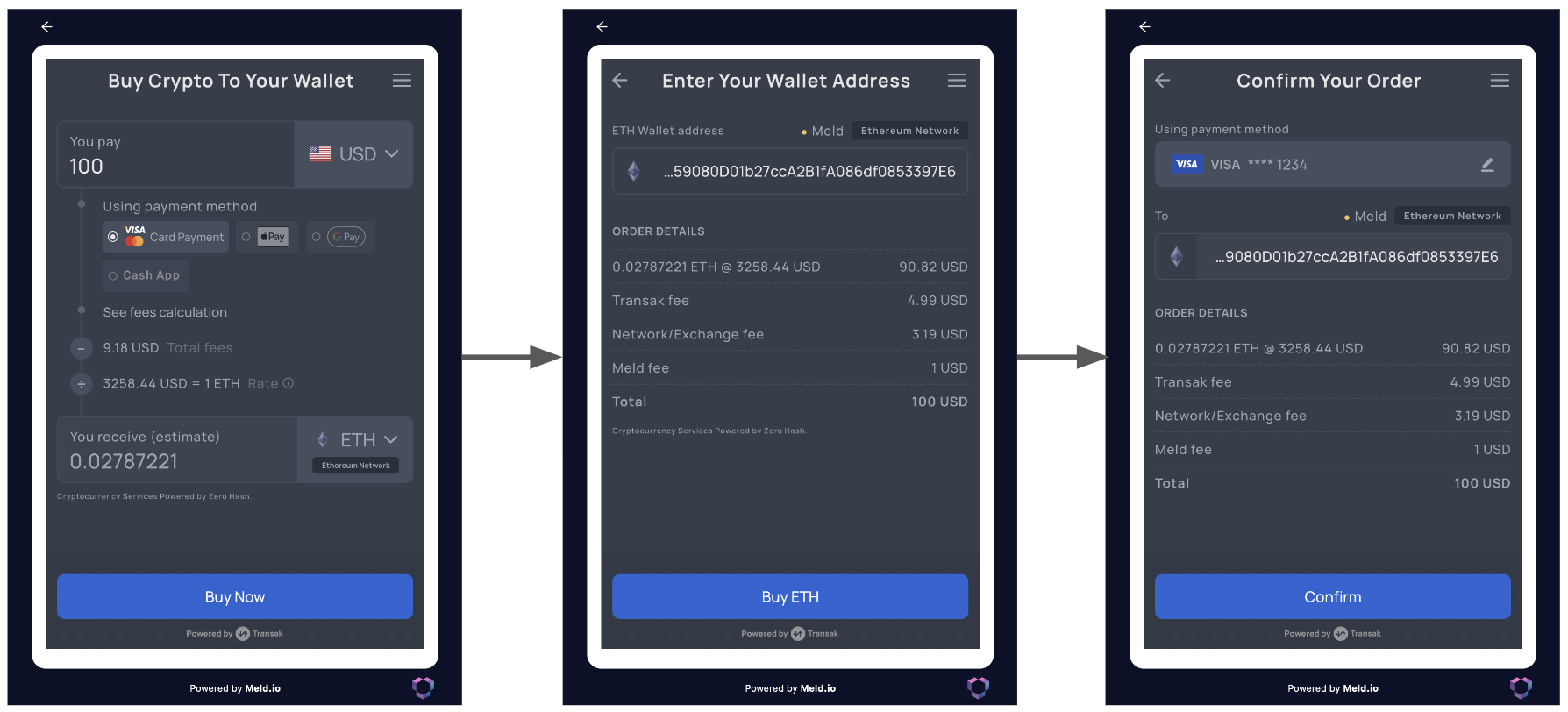

Pictured below is a sample widget flow for purchasing crypto:

Sample On-Ramp Widget — Sample Onramp Widget

The typical purchase widget flow contains a quote screen, which allows the user to see and edit their quote, followed by a screen where the user can enter their payment information or verify their wallet address, followed by a payment submission screen, as shown above. After payment is complete, the cryptocurrency will be sent by the service provider to the user, and this completes the flow.

Selling Crypto

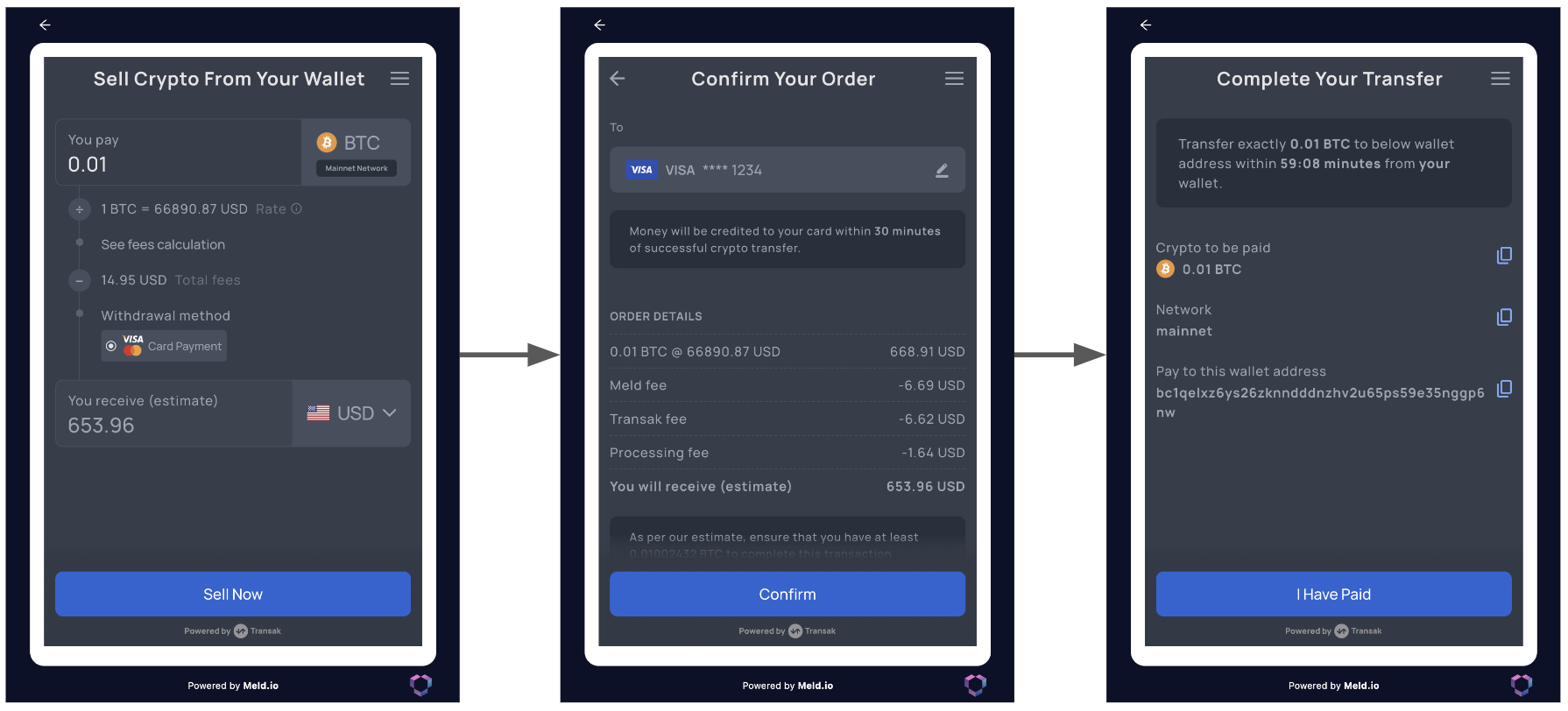

Pictured below is a sample widget flow for selling crypto:

The typical sell flow contains a quote screen, which allows the user to see and edit their quote, followed by a screen to connect their bank account or enter their card information, followed by a screen showing where to send the cryptocurrency to, as shown above. After the service provider receives the cryptocurrency, they inform the user that the bank transfer has been initiated, and this completes the flow.

If you subscribe to webhooks you will get alerts whenever any transaction status changes for all service providers. You may also poll our transaction status endpoint.

Information on how to test the crypto wizard can be found in the crypto testing guide.

Locking fields

Some service providers support locking the cryptocurrency and wallet address fields within their widgets. To do this, simply pass in the lockFields param to the widget endpoint with the values of destinationCurrencyCode/sourceCurrencyCode (depending on buy vs sell flow), walletAddress, or both. Here are the service providers that support locking those fields in their widgets:

	Locking cryptocurrency	Locking wallet address
Banxa	Not supported	Not supported
BTC Direct	Supported	Supported
Onramp Money	Not supported	Always locked when passed in
Ramp.Network	Supported	Not supported
Simplex	Supported	Supported
Transak	Supported	Supported
Sardine	Always locked	Always locked
TransFi	Always locked when passed in	Always locked when passed in
Unlimit	Supported	Supported
Paybis	Not supported	Not supported
Fonbnk	Not supported	Supported
Koywe	Always locked when passed in	Always locked when passed in
Robinhood	Always locked when passed in	Always locked when passed in
Coinbase	Not supported	Not supported
Blockchain	Always locked when passed in	Always locked when passed in
Topper	Supported	Supported
Guardarian	Not supported	Supported
Alchemypay	Always locked when passed in	Always locked when passed in
Yellowcard	Always locked when passed in	Always locked when passed in
Meso	Not supported	Not supported
Mesh	Not supported	Not supported
Bilira	Not supported	Not supported
SkrillCrypto	Not supported	Not supported
Robinhood	Always locked when passed in	Not supported
Coinbase	Not supported	Not supported
Binance	Not supported	Not supported

Here's a sample buy request with both the cryptoCurrency and walletAddress fields locked:

{
    "sessionData": {
        "walletAddress": "2N3oefVeg6stiTb5Kh3ozCSkaqmx91FDbsm",
        "countryCode": "US",
        "sourceCurrencyCode": "USD",
        "sourceAmount": "70",
        "destinationCurrencyCode": "BTC",
        "serviceProvider": "TRANSAK",
        "lockFields": ["destinationCurrencyCode","walletAddress"]
    },
    "externalCustomerId": "test1",
    "externalSessionId": "test1"
}

Embedding the Widget

Meld supports embedding the crypto widget within an iframe. For information on the recommended iframe size, see Embedding the Wizard.
